VN-1700VC Vacuum Crucible Furnace

: ~~No price~~

Cumulative sales0

Cumulative evaluation0

MOQ: 1set

Payment: T/T, Western Union, Paypal, L/C

Shipment: By Sea; By Air; By DHL/Fedex

Packaging: In Standard Exporting Package

Quantity: - +

Proceed to Check Out Add to Cart

Collect

Description

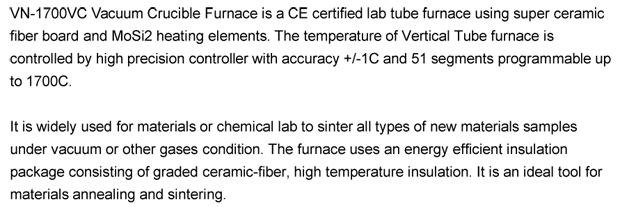

VN-1700VC Vacuum Crucible Furnace possesses the advantages of fast heating (20-40mins) , energy saving, high accuracy of controlling the temperature, reliable heat keeping, auto heating and cooling by programming and a furnace temperature nearing to the indoor.

It is widely used in the laboratory and manufacture of the field of pottery, chemical industry, metallurgy, and glass industries, new material developing, machinery, fire-proof material, architecture, special material and etc.

Technical Data


Chamber Size	Dia60 x Height 300mm
Power	4 KW
Voltage	AC 110V or AC 220V 50/60 Hz (please tell us when your place order)
Max. Temperature	1700C (< 3 hours)
Continuous work temp.	1600C
Max. Heating Rate	10C /min
Temperature controller	• PID automatic control and auto-tune function • 51 programmable segments for precise control •Built in protection for over-heated and broken Thermal couple •Larger digital control panel (96 x 96 mm) for easy operation.
Vacuum System	• 1L rotary pump with vacuum gauge and valves • Stainless steel with hi-temperature silicone O-rings ( <300C) • Ball valve and vacuum gauge is installed for immediate use • Vacuum pressure up to 10Pa by mechanical pump.
Temperature Accuracy	+/- 1C
Heating Element	Super MoSi2 heating elements
Thermal Couple	B type
Outer Dimension	510 x 550 x 830mm
Gross weight with package	160Kgs
Accessories (free charge)	1 pair of glove 1 crucible tong 2pcs MoSi2 heating elements
Software to control furnace through computer	•Communication module installed in temperature controller •software–TCS (Temperature Control System) • One USB cable, one RS485 Serial interface
Warranty	2 years limited warranty (Consumable parts such as thermocouple, o-rings and heating elements are not covered by the warranty)
