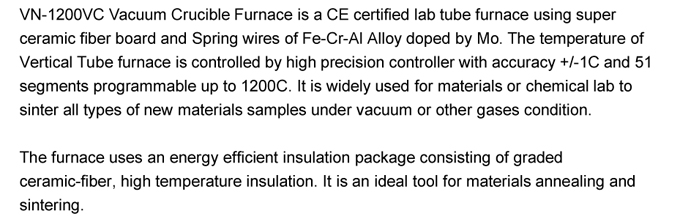

VN-1200VC Vacuum Crucible Furnace

1200C Vacuum Crucible Furnace possesses the advantages of fast heating (20-40mins) , energy saving, high accuracy of controlling the temperature, reliable heat keeping, auto heating and cooling by programming and a furnace temperature nearing to the indoor. It is widely used in the laboratory and manufacture of the field of pottery, chemical industry, metallurgy, and glass industries, new material developing, machinery, fire-proof material, architecture, special material and etc.

Features:

1. Controlling Accuracy: +/-1C

2. Temperature uniformity: +/-1C (according to the heating chamber size)

3. Control system: Micro-computer controlled, Easy to operate, programmable, automatic heating up, automatic heat preservation, automatic cooling.

4. Working temperature: 1100-1200C

5. Stainless steel Metallic flanges sealing (Double rubber ring)

6. Outside temperature of the furnace is close to room temperature

7. Double-circuit protection

8. Super refractory material, Excellent thermally resistant, High temperature resistant, Thermal shock resistant

Construction:

n 1400 type high purity ceramic fiber insulation (energy saving 40% and weight lighter about 30% than old furnace )

n Double layers steel casing with fan cooling, to ensure the surface of furnace below 50C

n The Vacuum Crucible Furnace has super ceramic fiber insulation around. The chamber to provide excellent uniformity and energy efficiency

n Quartz crucible in the furnace chamber
