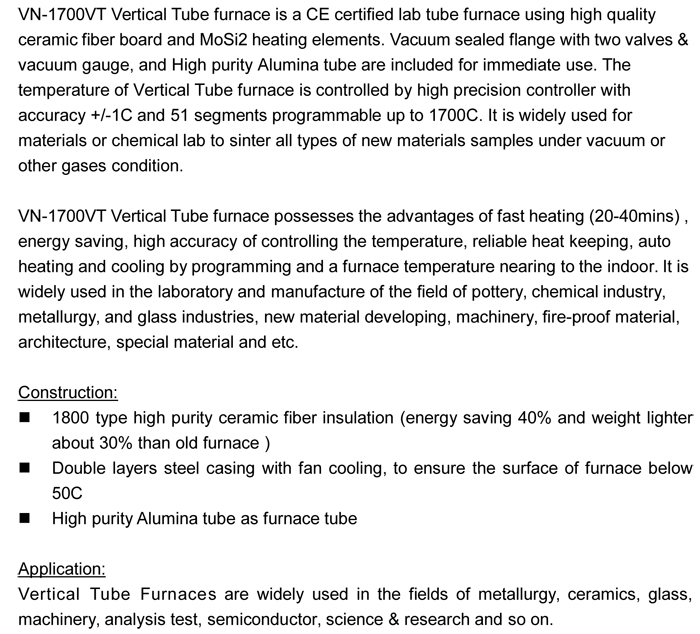

VN-1700VT Vertical Tube Furnace

Continuous

work temp.

1600C

Max. Heating Rate

30C /min

Temperature controller

1) PID automatic control and auto-tune function

2) 51 programmable segments for precise control

3) Built in protection for over-heated and broken Thermal couple

4) Larger digital control panel (96 x 96 mm) for easy operation.

Temperature Accuracy

+/- 1C

Heating Element

MoSi2 heating elements

Thermal Couple

B type

Seal Flange

1) One pair sealing flange with double silicone high temperature O-ring is included

2) Two SS needle valves and one dial vacuum gauge are installed with flange for immediate use.

3) Vacuum pressure can reach 50mtorr by quality mechanical vacuum pump and 10-5mtorr by diffusion pump.

Power

5KW ~12KW

Voltage

AC 110V or AC 220V 50/60 Hz

(pls tell us when your place order)

Warranty

Three years limited warranty (Consumable parts such as processing tubes, o-rings and heating elements are not covered by the warranty, please order the replacement at related products below.)

Certification

 CE certified
